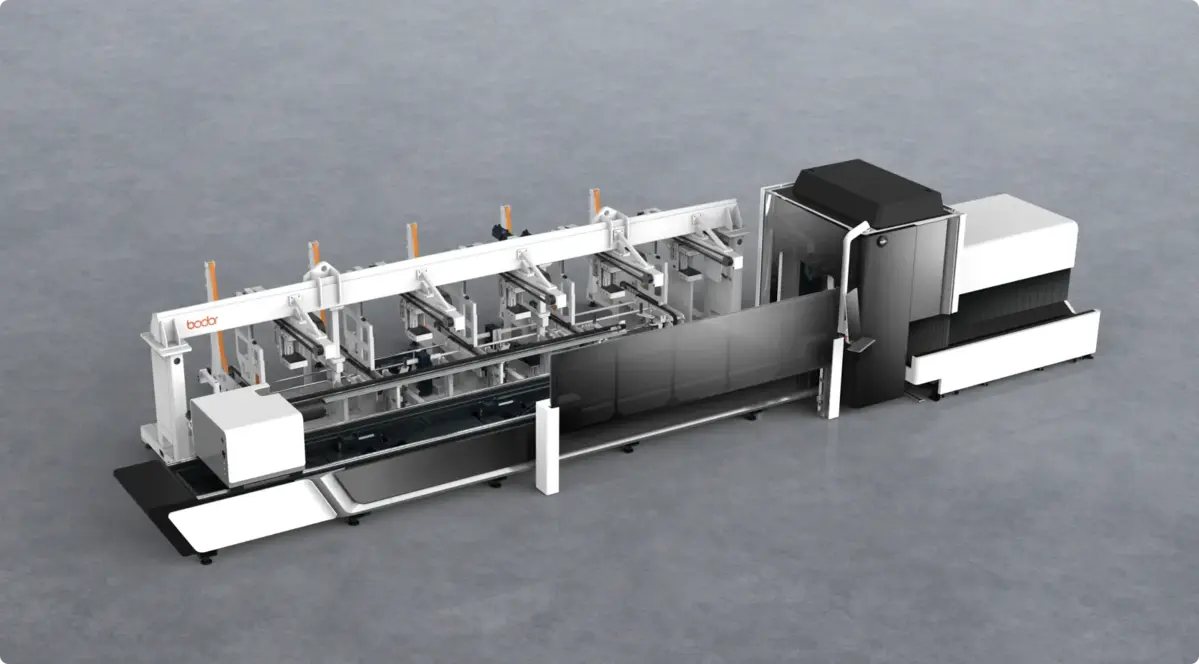

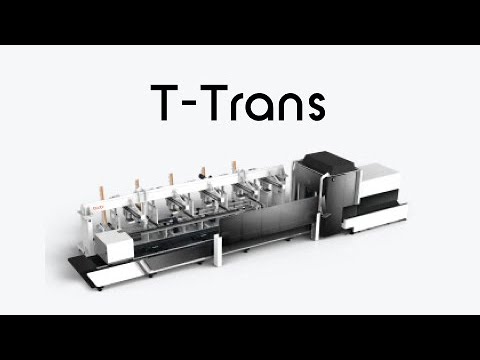

New BODOR T-Trans | Automatic Tube Loading Device
ConditionNew
New
Smart Alarms
With material shortage alarms and mid-cycle loading, the T-Trans ensures continuous loading, maintaining processing continuity.
Simpler Operation
BodorThinker control system eliminates the need for "one person operating two machines.
Fully Automatic Loading
The T-Trans can achieve fully automatic cyclic loading of tubes, reducing loading time and ensuring continuity and stability in processing.
Wider Loading Size Range
The T-Trans supports full-range loading for round tubes (Φ20-Φ220mm) and square tubes (□20-□220mm).
Higher Load Capacity for Storage
Equipped with a belt storage system, the load capacity of T-Trans is increased to 2000kg (6.5m) and 3000kg (9.2m), with a bundle diameter of up to 900mm.
Scratch Prevention for Tubes
Rubber pads are used to prevent tube scratches during the loading process.
Compatible Models T2-92
Station Quantity N/A
Loading Tube Types Round tubes、square tubes、rectangular tubes
Tube Size Range
Round tubes Φ20-Φ220mm
Square tubes □20 - □220mm
Rectangular tubes 220mm≥Side Length≥20mm
Max. Tube Weight 150kg 16kg/m
Max. Storage Capacity 3000kg
