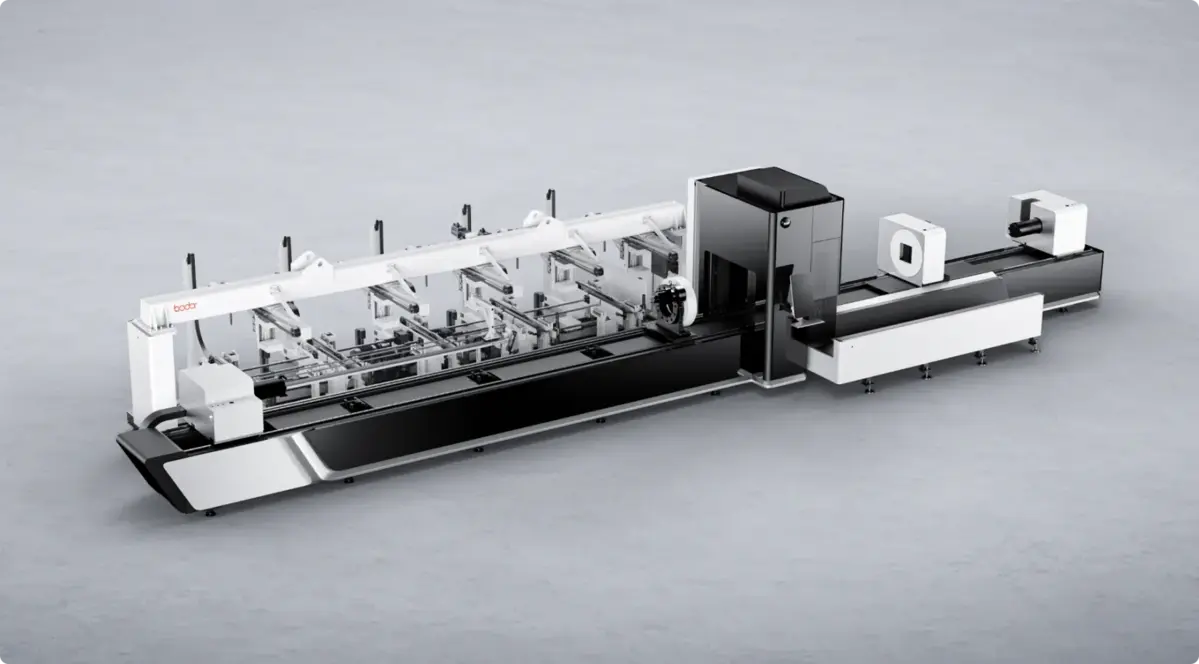

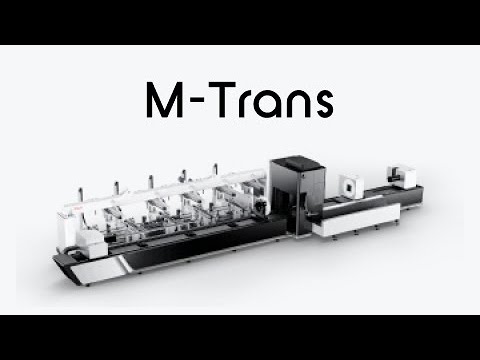

New BODOR M-Trans | Automatic Tube Loading Device
ConditionNew
New
Simpler Operation
BodorThinker control system eliminates the need for "one person operating two machines".
Smart Alarms
With material shortage alarms and mid-cycle loading, the M-Trans ensures continuous loading, maintaining processing continuity.
Fully Automatic Loading
The M-Trans can achieve fully automatic cyclic loading of tubes, reducing loading time and ensuring continuity and stability in processing.
Wider Loading Size Range
The M-Trans supports full-range loading for round tubes (Φ20-Φ220mm) and square tubes (□20-□220mm).
Compatible Models M2-65-35
M2-65-65
Station Quantity N/A
Loading Tube Types Round tubes、square tubes、rectangular tubes
Tube Size Range
Round tubes Φ20-Φ220mm
Square tubes □20 - □220mm
Rectangular tubes 220mm≥Side Length≥20mm
Max. Tube Weight 150Kg 23Kg/m
Max. Storage Capacity 2000kg
