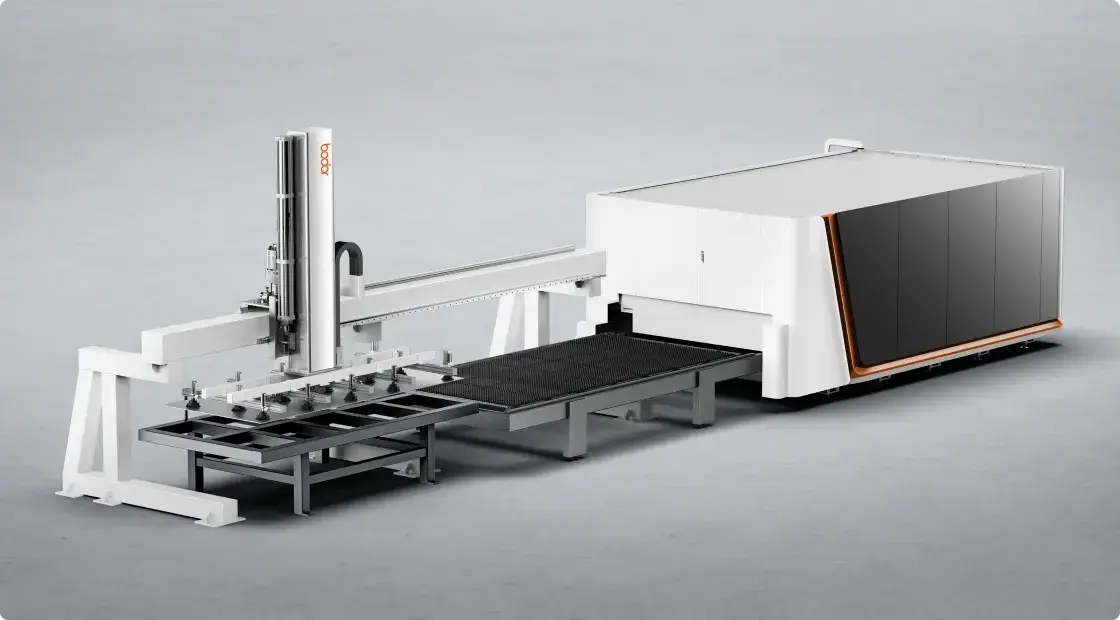

New BODOR iLoader6 | Automatic Sheet Loading Device
ConditionNew
New
Thick Sheet Loading
iLoader can automatically load metal sheets up to 20mm, eliminating traditional loading methods such as cranes and forklifts.
Max. Space Utilization
iLoader takes up minimal floor space, maximizing the production space.
Safety Protection
With a table positioning feedback mechanism, iLoader combines automatic safety interlocking with the main unit to enhance safety.
Flexible Positioning
iLoader can be positioned left or right according to the on-site processing environment.
Loading Dimensions 1000mm*1000mm/6500mm*2500mm
Overall Dimensions 13140mm*3595mm*3162mm
Max. Loading Sheet Size 6500mm*2500mm
Min. Loading Sheet Size 1000mm*1000mm
Max. Sheet Thickness 10mm
Min. Sheet Thickness 1mm
Machine Weight 4000kg
Max. Loading Weight 1300kg
