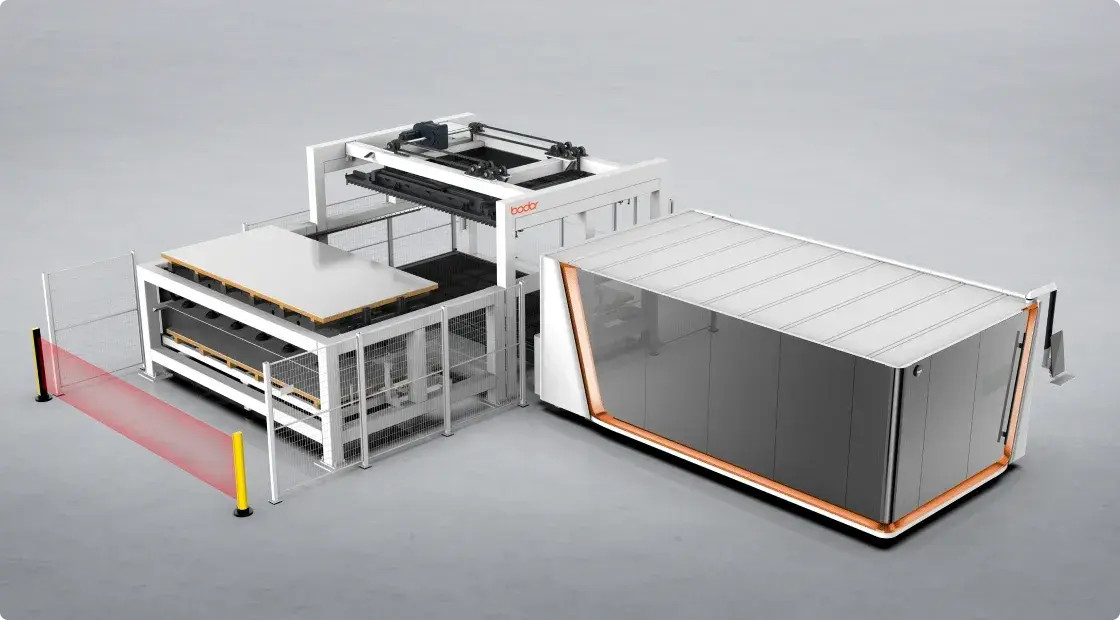

New BODOR iTrans3 | Automatic Sheet Loading & Unloading Device
ConditionNew
New
Synchronized Loading/Unloading
The iTrans breaks through the traditional industry limitation where loading and unloading cannot be done in parallel.
Smart Zoning
The iTrans can load different-sized sheets and sheets can be adjusted with just a single click, which greatly reduces manual intervention.
Queued Processing
The iTrans can conduct automatic queued processing for different shapes and thicknesses of sheets.
Error Warning
With material detection, shortage alarms and abnormal material quantity alarms, the iTrans can reduce scrap rates.
Loading Dimensions 3000mm*1500mm
Overall Dimensions 10000mm*8500mm*2600mm
Max. Loading Sheet Size 3000mm*1500mm
Min. Loading Sheet Size 1000mm*1000mm
Max. Sheet Thickness 25mm
Min. Sheet Thickness 0.8mm
Machine Weight 4800kg
Max. Loading Weight 900Kg
