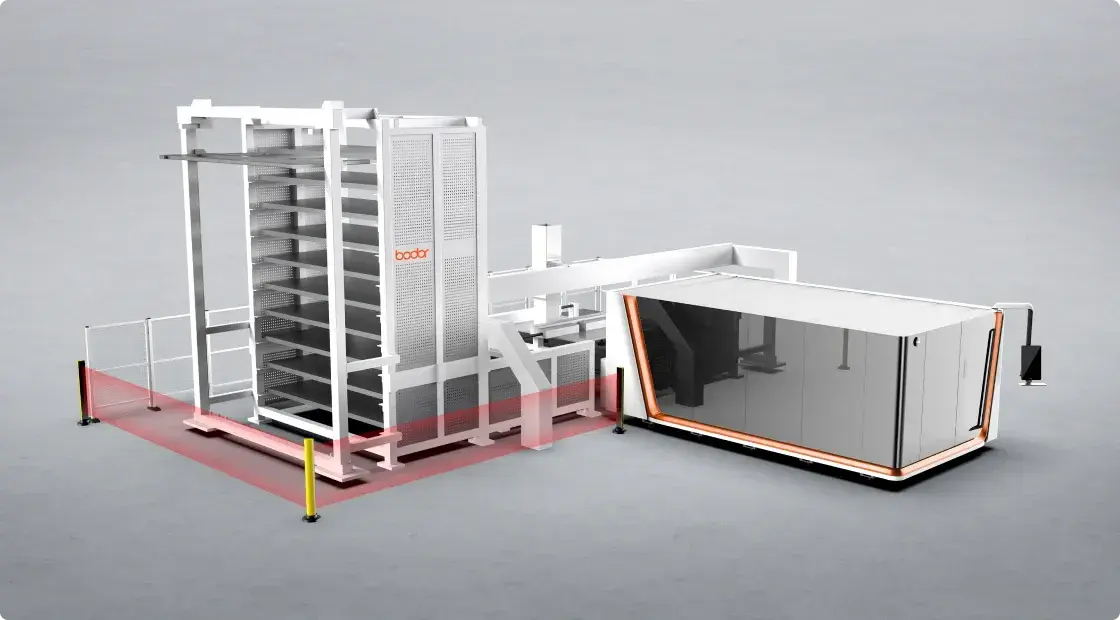

Integrated Functions
The iTransTower integrates material loading, unloading, and storage and it can achieve simultaneous material loading and unloading without excessive manual intervention.
Efficient Loading
One iTransTower can achieve the loading, unloading and storage of materials for multiple cutting machines. This streamlines the production process and maximize productivity.
Smart Zoning
The iTransTower can load different-sized sheets and sheets can be adjusted with just a single click, which greatly reduces manual intervention.
Error Warning
With material detection, shortage alarms and abnormal material quantity alarms, the iTransTower can reduce scrap rates.
Loading Dimensions 1250mm*1250mm-3000mm*1500mm
Overall Dimensions 11000mm*11000mm*6100mm
L*W*H The P3 main machine is included.
Max. Loading Sheet Size 3000mm*1500mm
Min. Loading Sheet Size 1250mm*1250mm
Max. Sheet Thickness 20mm
Min. Sheet Thickness 1mm
Machine Weight 12000kg
Max. Loading Weight 720kg
